China Customized titanium grade 5 plates Wholesale Suppliers Factory

Product Introduction

Looking for high-performance metal solutions that deliver exceptional strength and durability? Our titanium grade 5 plates offer the perfect combination of superior mechanical properties and outstanding corrosion resistance. Made from Ti-6Al-4V alloy containing 6% aluminum and 4% vanadium, these plates represent the most widely used titanium alloy worldwide. You'll find these plates ideal for demanding applications where strength-to-weight ratio matters most. With over 30 years of experience in the rare metal industry, we provide you with premium quality plates that meet the highest industry standards.

Key Features and Benefits

Our Ti-6Al-4V plates deliver remarkable advantages for your projects. You get incredible tensile strength ranging from 895-960 MPa, making them significantly stronger than commercially pure titanium grades. The excellent formability and weldability ensure easy processing for your specific requirements.

These plates offer superior corrosion resistance against most chemicals and saltwater environments. You'll appreciate the outstanding fatigue strength that extends component lifespan. The low density of 4.43 g/cm³ provides weight savings without compromising performance.

Technical Specifications

Property	Value
Alloy Composition	Ti-6Al-4V (6% Aluminum, 4% Vanadium)
Density	4.43 g/cm³
Tensile Strength	895-960 MPa
Thickness Range	1-50mm
Melting Point	1604-1660°C
Elastic Modulus	113.8 GPa
Thermal Conductivity	6.7 W/m·K
Standard	ASTM B265
Surface treatment	pickling surface
Certificate	ISO 9001:2015
Production time	normal stock size need 3-5 days, customized size need about 10-15 days
Payment terms	30%TT in advance, 70% balance before shipment

Available Grades and Materials

We supply various titanium grades to meet your specific needs. Grade 5 remains our most popular choice due to its balanced properties. You can also choose from Grade 1 and Grade 2 for applications requiring maximum corrosion resistance.

Our inventory includes different surface finishes from hot-rolled to polished conditions. Custom alloy compositions are available for specialized applications requiring unique property combinations.

Chemical composition

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr 3	0.05	0.08	0.015	0.30	0.35	/	/	/	/	/	bal
Gr 4	0.05	0.08	0.015	0.50	0.40	/	/	/	/	/
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9

2.Mechanical Properties

Grade	Status	Tensile Strength		Yield Strength		Elongation	Area of Reducation
		Ksi	Mpa	Ksi	Mpa	%
		≥
GR1	Annealed	35	240	25	170	24	30
GR2		50	345	40	275	20	30
GR3		65	450	55	380	18	30
GR4		80	550	70	483	15	25
GR5		130	895	120	828	10	25
GR7		50	345	40	275	20	30
GR9		90	620	70	483	15	25
GR12		70	483	50	345	18	25

Manufacturing Process

Our manufacturing process ensures consistent quality and performance. We start with premium quality sponge titanium and carefully controlled alloying additions. The vacuum arc remelting process creates homogeneous ingots with minimal impurities.

Hot rolling operations achieve precise thickness control while maintaining optimal microstructure. Heat treatment processes optimize mechanical properties for your specific application requirements. Final inspection and testing verify all specifications before shipment.

Raw material inspection

Titanium Melting

Titanium forging

Machining and forming

Final inspection

Packaging

Applications and Industries

Titanium grade 5 plates serve diverse industries requiring high-performance materials. Aerospace applications include aircraft structural components, engine parts, and landing gear systems. The medical industry uses these plates for surgical instruments and biomedical devices.

Marine applications benefit from excellent saltwater corrosion resistance. Chemical processing equipment relies on the superior chemical compatibility. Automotive racing components utilize the exceptional strength-to-weight ratio. Defense applications require the proven reliability and performance.

Be used in a wide range of industries.

Marine engineering

Medical implants

Medical Equipment

Chemical Processing

Aerospace and Defense

Energy and Environmental Engineering

Product Dimensions and Tolerances

We maintain strict dimensional tolerances to ensure perfect fit for your applications. Thickness tolerances typically range from ±0.1mm for thin plates to ±0.5mm for thicker sections. Length and width can be customized according to your specifications.

Standard plate sizes range from small precision components to large structural panels. Custom cutting services provide exact dimensions for your specific requirements. Edge conditions can be mill edge, sheared, or precision machined.

Product Features in Detail

The unique microstructure of Ti-6Al-4V provides exceptional mechanical properties. Alpha-beta phase structure delivers optimal strength and ductility combination. You'll find excellent machinability compared to other high-strength materials.

Weldability characteristics allow joining using various welding processes. The biocompatibility makes these plates suitable for medical applications. Temperature resistance maintains properties across wide operating ranges.

Quality Assurance and Testing

Every plate undergoes comprehensive testing to verify material properties. Chemical composition analysis ensures precise alloy content. Mechanical testing confirms tensile strength, yield strength, and elongation values.

Ultrasonic inspection detects internal discontinuities. Surface quality inspection ensures smooth finishes. Mill test certificates document all test results for traceability. Our quality management system follows international standards.

OEM & Customization Services

We specialize in custom solutions tailored to your exact requirements. Our engineering team works closely with you to optimize material selection. Custom dimensions, surface finishes, and heat treatments are available.

Prototype quantities support your development projects. Volume production capabilities ensure consistent supply for large programs. Technical support helps you maximize the benefits of our titanium grade 5 plates.

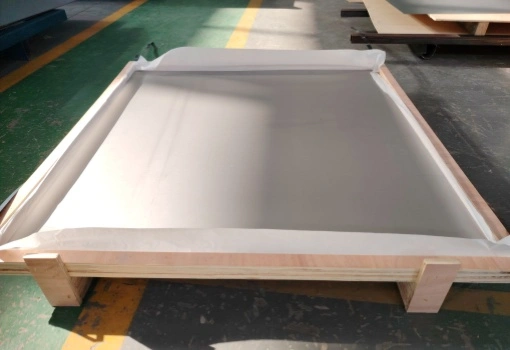

Packaging and Shipping

Careful packaging protects your plates during transportation. Individual wrapping prevents surface damage and contamination. Wooden crates provide secure shipping for international deliveries.

Documentation includes material certificates and shipping manifests. Express shipping options ensure quick delivery for urgent requirements. Our logistics team coordinates delivery to your preferred schedule.

package

Why Choose Us

Located in Baoji, China's "Titanium Capital," we offer unmatched expertise and competitive pricing. Our founder's 30+ years experience ensures superior product knowledge and quality. You benefit from direct manufacturer pricing without middleman markups.

We serve customers in over 50 countries worldwide with proven reliability. On-time delivery and customer-focused service build lasting partnerships. Continuous improvement ensures we meet evolving industry requirements.

Certification

FAQs

Q: What makes Grade 5 different from other titanium grades?

A: Grade 5 contains aluminum and vanadium additions that significantly increase strength while maintaining good corrosion resistance.

Q: Can these plates be welded?

A: Yes, Ti-6Al-4V offers excellent weldability using appropriate techniques and inert gas protection.

Q: What's the minimum order quantity?

A: We accommodate both small prototype quantities and large production orders based on your needs.

Contact Us

Ready to discuss your titanium plate requirements? Our technical team stands ready to help you select the optimal solution.

Experience the difference that quality titanium grade 5 plates can make in your next project. We look forward to becoming your trusted titanium supplier.
