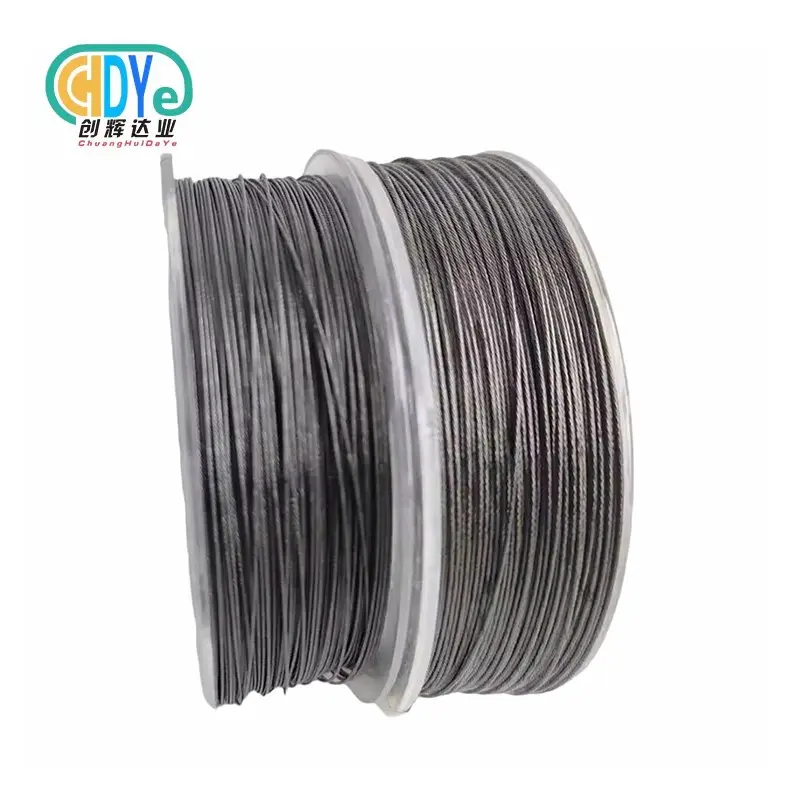

Gr5 Titanium Wire

Product Details

Gr5 Titanium Wire, also known as Ti-6Al-4V wire, is a premium-grade titanium alloy product recognized for its outstanding strength-to-weight ratio, corrosion resistance, and biocompatibility. It is widely used in aerospace fasteners, medical implants, chemical equipment, and marine components. Produced under strict international standards, Gr5 Titanium Wire offers stable mechanical performance and excellent workability in both cold and hot forming conditions.

1.Type: straight wire or coil wire

2.Diameter: 0.5mm-6.0mm Length: as your request

3.Samples: we support your sample order just contact me

GR5 titanium wire is a metal wire made of titanium alloy, mainly composed of titanium, aluminum, and vanadium. The chemical composition of GR5 titanium alloy is approximately 6% aluminum (Al) and 4% vanadium (V), with the remainder being pure titanium (Ti).

Technical Specifications

Main characteristics:

1.Mechanical properties: GR5 titanium alloy has high strength and excellent tensile strength. The tensile strength is usually above 925 MPa (135 ksi), the yield strength is above 870 MPa (127 ksi), and the elongation is usually above 10%.

2. Corrosion resistance: GR5 titanium alloy exhibits excellent performance in various media, especially in neutral and oxidizing media, with strong corrosion resistance. It has good corrosion resistance to most alkaline solutions, organic acids, and chloride solutions, but is not suitable for boiling sodium hydroxide solutions.

3. High temperature stability: GR5 titanium alloy can work for a long time at temperatures of 400 ℃ or higher, and has good high-temperature performance.

4. Machinability: GR5 titanium alloy has good machinability and is suitable for various processing techniques such as forging, milling, turning, and welding.

Product Features

• High Strength-to-Weight Ratio: Delivers superior mechanical performance without compromising lightness.
• Excellent Corrosion Resistance: Performs well in saltwater, acids, and alkalis.
• Outstanding Biocompatibility: Safe for medical and dental use.
• Precise Tolerance Control: Achieved through multi-pass drawing and vacuum annealing.
• Superior Fatigue Resistance: Ensures durability under repeated mechanical stress.

Application

Aerospace: Used for manufacturing structural components, engine parts, fuselage, and propellers for aircraft, missiles, and spacecraft.

Biomedical: Due to its biocompatibility and corrosion resistance, it is used in the production of medical devices, bone repair devices, and artificial joints.

Automotive manufacturing: used for components such as car braking systems, exhaust pipes, seats, and frames to reduce weight and improve fuel efficiency.

Sports equipment: used for manufacturing advanced sports equipment such as bicycle frames, golf clubs, and tennis rackets.

Manufacturing & Processing Capability

We employ vacuum melting, hot forging, precision drawing, and surface polishing lines to ensure uniform metallurgical quality. Each production stage is strictly monitored by process engineers, and all wires are subjected to ultrasonic inspection and straightness tests. Custom wire diameters and mechanical property adjustments are available according to buyer requirements.

​​​​​	​​​​​	​​​​​	​​​​​
​​​​​	​​​​​	​​​​​	​​​​​

​​​​​

Raw material inspection

​​​​​

Titanium Melting

​​​​​

Titanium forging

​​​​​

Machining and forming

​​​​​

Final inspection

​​​​​

Packaging

Surface & Mechanical Performance

Gr5 Titanium Wire exhibits smooth surfaces, consistent microstructure, and exceptional tensile strength. It maintains stability even under extreme temperatures and corrosive environments, providing long service life and reliable connection performance for fasteners, welding rods, and implant parts.

Quality Assurance

Our quality management system complies with ISO 9001 and AS9100 standards. Every batch is analyzed for chemical composition, mechanical strength, and surface quality. Third-party inspection and EN 10204 3.1 certification can be provided upon request to ensure buyers receive fully traceable and compliant materials.

​​​​

ISO 9001:2015

​​​​

ISO 9001:2015

Application Advantages

Gr5 Titanium Wire is widely applied in:

• Aerospace components and fasteners
• Medical orthopedic and dental implants
• Chemical equipment and electrolysis anodes
• Sports equipment and marine fittings

Be used in a wide range of industries.



​​​​​

Marine engineering

​​​​​

Medical implants

​​​​​

Medical Equipment

​​​​​

Chemical Processing

​​​​​

Aerospace and Defense

​​​​​

Energy and Environmental Engineering

R&D and Customization

Our R&D department focuses on alloy property enhancement and surface modification research. We collaborate with material research institutes to improve fatigue resistance, purity, and drawability of Gr5 wire. Buyers can request custom wire coils, spools, or precision straight rods with specific strength and tolerance requirements for aerospace and medical manufacturing projects.

Packaging & Logistics

Each coil is vacuum-packed, moisture-proofed, and reinforced in wooden crates. Standard export packaging ensures protection during long-distance transportation. We offer international air, sea, and express logistics services with detailed shipping documentation for smooth customs clearance.

​​

​​

​​

​​	​​	​​	​
​​	​​	​​	​​

FAQ

Q1: What is the minimum order quantity for Gr5 Titanium Wire?
A1: The MOQ is typically 5 kg, but trial orders are accepted.

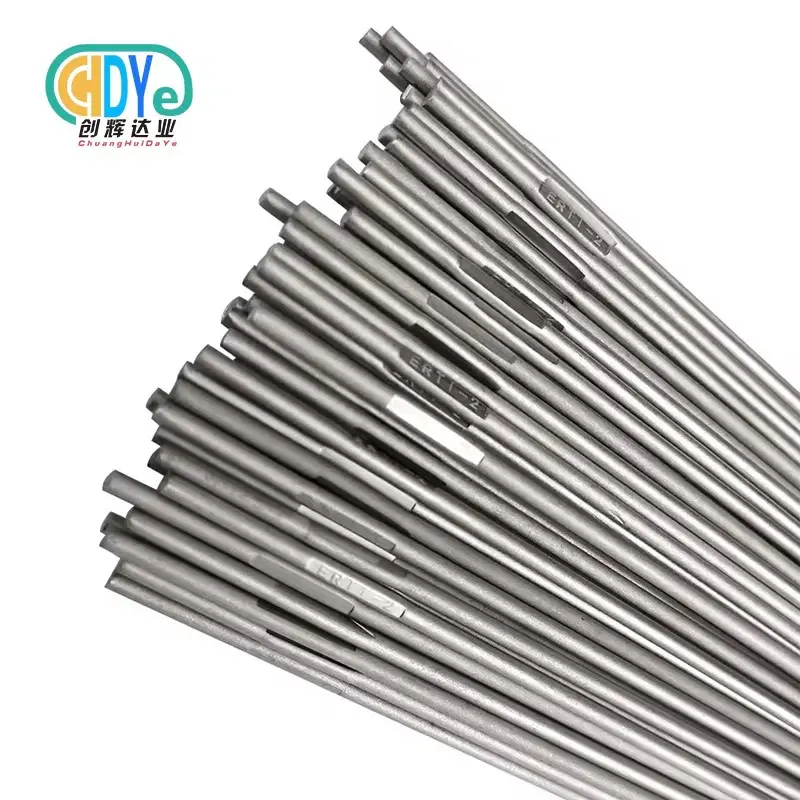

Q2: Can you supply wire for additive manufacturing or welding use?
A2: Yes, we provide customized wire suitable for 3D printing and welding applications.

Q3: What tolerance can you achieve for fine wire diameters?
A3: Tolerance can reach ±0.01 mm depending on wire size and condition.

​​​​​Why Choose Us :

1. You can get the perfect material according to your requirement at the least possible price.

2. We offer FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.

3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)

4. You can get stock alternatives, mill deliveries with minimizing manufacturing time.

5. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Sample order is supported!

​​​​​

​​​​​

​​​​​

​​​​​

​​​​​

​​​​​
