China Customized titanium sheet metal Wholesale Suppliers Factory

Product Introduction

Looking for reliable, high-quality titanium sheet metal for your critical applications? You've come to the right place. At Shaanxi Chuanghui Daye Metal Material Co., Ltd., we specialize in manufacturing premium titanium sheet metal that delivers exceptional performance across aerospace, medical, and industrial sectors. Our titanium sheets combine superior strength-to-weight ratio with outstanding corrosion resistance, making them your ideal choice for demanding projects. With over 30 years of industry expertise, we understand exactly what you need to succeed.

Key Features and Benefits

Your projects deserve materials that won't let you down. Our titanium sheets offer:

Exceptional strength-to-weight ratio - Get maximum performance without unnecessary weight
Outstanding corrosion resistance - Withstand harsh environments and chemical exposure
High-temperature stability - Maintain integrity up to 600°C operating temperatures
Biocompatibility - Perfect for medical and food-grade applications
Dimensional stability - Minimal thermal expansion ensures consistent performance
Extended service life - Reduce replacement costs with durable materials

Technical Specifications

Property	Value
Thickness Range	0.5mm - 50mm
Width	Up to 1500mm
Length	customized
Density	4.51 g/cm³
Tensile Strength	240-550 MPa
Yield Strength	170-485 MPa
Operating Temperature	Up to 600°C
Elongation	20-25%
Certificate	ISO 9001:2015
Condition	Annealed
Surface treatment	Bright surface
Type	plate, sheet, foil, strip, are all available
Production time	stock size 1-3 days, customized need 7-15 days
Payment terms	30%TT in advance, 70% balance before shipment

Available Grades and Materials

We offer two premium grades to match your specific requirements:

Grade 2 (CP-2): Your go-to choice for excellent corrosion resistance and formability. Perfect for chemical processing, marine applications, and architectural projects.

Grade 5 (Ti-6Al-4V): When you need maximum strength and elevated temperature performance. Ideal for aerospace components, medical implants, and high-stress industrial applications.

Chemical composition

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr 3	0.05	0.08	0.015	0.30	0.35	/	/	/	/	/	bal
Gr 4	0.05	0.08	0.015	0.50	0.40	/	/	/	/	/
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9

Physical properties

Grade	Status	Tensile Strength		Yield Strength		Elongation	Area of Reducation
		Ksi	Mpa	Ksi	Mpa	%
		≥
GR1	Annealed	35	240	25	170	24	30
GR2		50	345	40	275	20	30
GR4		80	550	70	483	15	25
GR5		130	895	120	828	10	25
TI-6AL-4VELI		125	860	115	795	10	25
GR7		50	345	40	275	20	30
GR9		90	620	70	483	15	25
GR11		35	240	25	170	24	30
GR12		70	483	50	345	18	25

Manufacturing Process

Our advanced manufacturing ensures consistent quality in every sheet. We start with premium titanium ingots, then use precision rolling techniques to achieve exact thickness tolerances. Each sheet undergoes careful annealing to optimize mechanical properties and stress relief. Quality control happens at every step, ensuring you receive materials that meet your exact specifications.

Raw material inspection

Titanium Melting

Titanium forging

Machining and forming

Final inspection

Packaging

Applications and Industries

Your titanium sheet metal finds applications across multiple industries:

Aerospace: Aircraft panels, engine components, structural elements
Medical: Surgical instruments, implants, prosthetics
Chemical Processing: Heat exchangers, reactor vessels, piping systems
Marine: Offshore platforms, ship components, desalination equipment
Automotive: Performance parts, exhaust systems, racing components
Architecture: Cladding, roofing, decorative elements

Be used in a wide range of industries.

Marine engineering

Medical implants

Medical Equipment

Chemical Processing

Aerospace and Defense

Energy and Environmental Engineering

Product Dimensions and Tolerances

We maintain tight tolerances to ensure your components fit perfectly:

Thickness tolerance: ±0.05mm for sheets under 3mm, ±0.1mm for thicker materials
Width tolerance: ±2mm standard, ±1mm precision cut available
Length tolerance: ±5mm standard cutting
Flatness: Better than 2mm per meter
Surface finish: 2B standard, custom finishes available

Product Features in Detail

Your success depends on material reliability. Our sheets feature uniform grain structure for consistent mechanical properties. The smooth surface finish reduces friction and improves appearance. Each sheet maintains excellent formability, allowing complex shapes without cracking. The material exhibits superior fatigue resistance, extending component life in cyclic loading applications.

Quality Assurance and Testing

Every batch undergoes comprehensive testing to ensure compliance with international standards. We perform chemical composition analysis, mechanical property testing, and dimensional verification. Ultrasonic testing detects any internal defects. Surface quality inspection ensures smooth, defect-free finishes. You receive certified test reports with every shipment.

OEM & Customization Services

Your unique requirements deserve custom solutions. We offer:

Custom dimensions and thicknesses
Precision cutting and shaping
Surface treatments and coatings
Special packaging requirements
Technical support and material selection guidance
Prototyping services for new applications

Packaging and Shipping

Your materials arrive safely and ready to use. We use moisture-resistant packaging with protective films to prevent surface damage. Wooden crates provide secure shipping for larger orders. International shipping available to over 50 countries. Express delivery options ensure fast turnaround times when you need materials quickly.

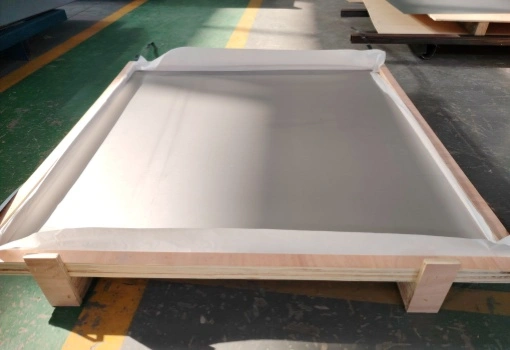

titanium plate pcakage

Why Choose Us

Located in China's "Titanium Capital," we bring three decades of rare metal expertise to your projects. Our founder's extensive industry experience ensures you receive knowledgeable support and quality products. We've successfully supplied customers across the United States, Germany, South Korea, Singapore, and many other countries.

You benefit from our commitment to competitive pricing, on-time delivery, and customer-focused service. We build lasting partnerships based on trust, reliability, and continuous improvement.

Certification
