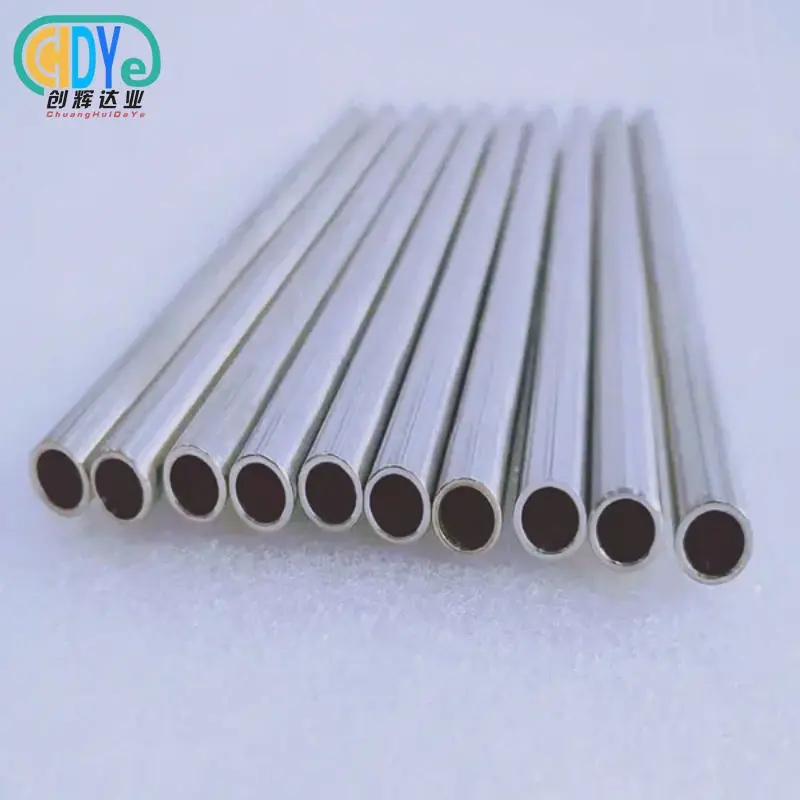

Seamless Tungsten Tube

Product Introduction

The Seamless Tungsten Tube from Shaanxi Chuanghui Daye Metal Material Co., Ltd. is a premium product designed for high-temperature, high-stress, and chemically aggressive environments. Made from ultra-pure tungsten and tungsten alloys, this tube offers excellent thermal stability, outstanding mechanical strength, and superior resistance to corrosion and oxidation.

Manufactured under stringent quality standards such as ASTM, AMS, ISO, and GB, the Seamless Tungsten Tube is suitable for both industrial and research applications. Its seamless design ensures uniform wall thickness, eliminating weak points and providing enhanced structural integrity for demanding applications. With precise tolerances and a smooth internal surface, this tube is ideal for vacuum systems, high-temperature furnaces, and metallurgical processes.

Size

Material : pure tungsten 99.95%

Density: 19.3g/cm3

Specification: ODφ6-φ150mm*Wall thickness 0.3-25mm*L 30-1000mm

Property

High melting point and deformation resistance: The melting point of tungsten tube is as high as 3420 ℃, which makes it perform well in extreme high temperature environments. In addition, tungsten tubes have minimal deformation after multiple uses and exhibit excellent creep resistance.

High density and hardness: Tungsten has a high density, which allows tungsten tubes to maintain high strength and hardness at high temperatures. This characteristic makes tungsten tubes perform well in high-temperature environments and suitable for applications that require high strength and hardness.

Good thermal conductivity: The high thermal conductivity of tungsten makes it excellent in heat exchange and conduction. This makes tungsten tubes very effective in applications such as high-temperature furnaces and thermocouple protection tubes.

Inspection

‌Chemical composition analysis

Geometric size and shape inspection‌

‌Surface quality inspection

‌Process performance inspection‌

Metallographic analysis



Application Advantages

1.Suitable for producing ion implantation parts.

2.For producing electric light source parts and electric vacuum components.

3.For producing heating elements and refractory parts in high temperature furnaces.

4.Used as electrodes in the field of rare earth metal industry.

Manufacturing & Process Flow

Producing a high-quality Seamless Tungsten Tube involves several precise steps:

1. Raw Material Selection: Only high-purity tungsten powders and alloys are used to ensure superior mechanical and thermal properties.
2. Powder Metallurgy and Sintering: Tungsten powders are compacted and sintered at ultra-high temperatures to achieve maximum density and uniformity.
3. Hot Forging and Extrusion: Tubes are forged and extruded to the required dimensions, improving structural strength and eliminating defects.
4. Precision Machining: CNC lathes and milling machines ensure exact diameters, smooth surfaces, and accurate wall thickness.
5. Heat Treatment: Stress relief and thermal processing enhance dimensional stability and performance under extreme conditions.
6. Final Inspection and Surface Finishing: Polishing and thorough inspection guarantee a flawless surface and reliable functionality.

​​​​​	​​​​​	​​​​​	​​​​​
​​​​​	​​​​​	​​​​​	​​​​​

Quality Control & Inspection​​​​​​​​​​​​​​

Chuanghui Daye implements strict quality control for every Seamless Tungsten Tube:

• Chemical Composition Analysis: Ensures proper tungsten purity and correct alloy composition.
• Dimensional Accuracy Testing: Checks inner and outer diameters and wall thickness tolerances.
• Mechanical and Thermal Testing: Assesses resistance to high temperatures and mechanical stress.
• Surface Examination: Detects cracks, roughness, or any irregularities.
• Traceability: Each tube is labeled with batch numbers and product specifications for full quality tracking.

These measures guarantee reliability and long-term performance across various applications.

R&D and Customization​​​​​​​

Shaanxi Chuanghui Daye offers comprehensive R&D and customization for the Seamless Tungsten Tube:

• Custom Dimensions: Diameters, lengths, and wall thicknesses tailored to specific equipment and experimental needs.
• Prototype & Small-Batch Production: Supports research projects and pilot-scale industrial applications.
• Material Selection Guidance: Expert advice on alloying, thermal management, and corrosion resistance.
• Design Optimization: Enhancements for increased mechanical strength, thermal conductivity, and durability.

Clients can receive highly customized tubes optimized for their unique operational requirements.

Packaging & Global Logistics

Every Seamless Tungsten Tube is packaged for safe international delivery:

• Wrapped in vacuum or anti-rust films to prevent oxidation.
• Foam padding and reinforced wooden crates protect the tube during transit.
• Clear labeling with batch numbers, specifications, and handling instructions.
• Shipping via air, sea, or land logistics to more than 50 countries including the USA, Germany, France, South Korea, and Singapore.

This ensures that the tube arrives in perfect condition, ready for immediate deployment.

​​

​​

​​

​​	​​	​​	​
​​	​​	​​	​​



OEM & Customization Service

Chuanghui Daye provides extensive OEM and customization services for the Seamless Tungsten Tube:

• Customized diameters, lengths, and wall thicknesses according to client specifications.
• Prototype or small-batch production for R&D or specialized industrial uses.
• Technical consultation for material choice, thermal management, and performance optimization.
• Comprehensive after-sales support to ensure long-term reliability.

These services make it possible to achieve tubes that meet even the most stringent operational requirements.

Inspection Process

Each Seamless Tungsten Tube undergoes a meticulous inspection:

1. Raw Material Verification: Confirms high-purity tungsten and correct alloy ratios.
2. Dimensional Check: Ensures precise diameters, wall thickness, and tolerance compliance.
3. Mechanical & Thermal Testing: Validates strength and stability under extreme conditions.
4. Surface Quality Examination: Detects micro-cracks, imperfections, and surface roughness.
5. Final Approval & Packaging: Confirms that the tube is ready for shipping and application.

This process guarantees consistent quality and performance for every unit.

Why Choose Us

Shaanxi Chuanghui Daye Metal Material Co., Ltd. is a trusted global supplier of tungsten and rare metal materials:

• Over 30 years of expertise in high-purity tungsten and refractory metals.
• ISO 9001:2015 certified quality management system.
• Advanced production equipment including electron beam furnaces, CNC machines, and precision rolling facilities.
• Products exported to more than 50 countries worldwide with strong reliability.
• Comprehensive OEM and technical support services.
• Commitment to on-time delivery, competitive pricing, and premium product quality.



​​​​​

​​​​​

​​​​​

​​​​​

​​​​​

​​​​​
