Why Choose Pure Niobium Round Bars for Corrosion Resistance?

Pure niobium round bars often come up as a top choice when engineers and procurement managers are looking for materials that can withstand the most severe chemical and industrial conditions. These bars have a purity in excess of 99.9% Nb and produce a self-repairing oxide coating which is very resistant to assault by acids, chlorides and oxidizing environments. Corrosion-related equipment failures cost companies billions of dollars yearly in unexpected downtime and replacement cycles. Choosing the correct base metal in advance removes most of that risk and niobium's track record in chemical processing, aerospace and electronics makes it a material worth getting to know well.

Understanding Pure Niobium Round Bars and Their Corrosion Resistance

Physical Characteristics and Dimensions

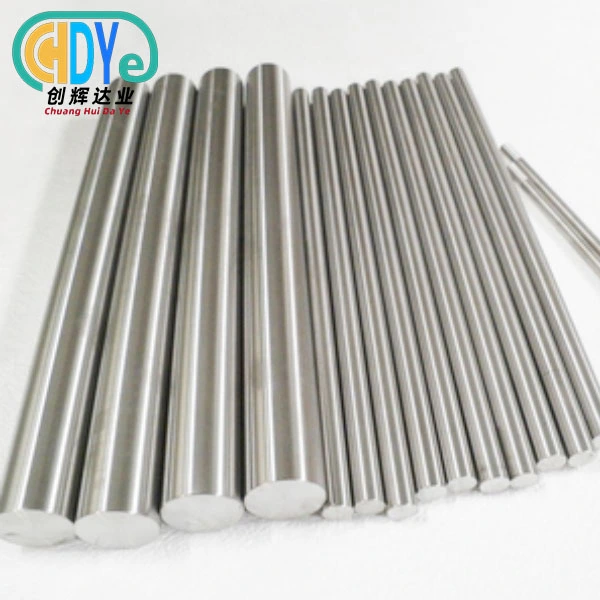

Niobium round bars are solid cylindrical rods of unalloyed niobium (Nb ≥99.9%) made according to ASTM B392 standard. Shaanxi Chuanghui Daye Metal Material Co., Ltd. offers diameters from 1 mm to 50 mm and lengths up to 1,000 mm (custom lengths available). Surface treatments include polished and as-rolled to meet differing downstream manufacturing needs. Niobium has a density of 8.57 g/cm3, about half the density of tantalum but with similar corrosion resistance in many acidic conditions.

Mechanical Properties That Support Durability

The niobium bars of Chuanghui Daye have a tensile strength of 200~350 MPa and an elongation of over 20%, which can be cold worked and precision machined without breaking and surface deterioration. This ductility is closely related to its corrosion resistance: a crack-free, homogenous grain structure leaves fewer sites of initiation for pitting or crevice corrosion. We use a vacuum melting method to keep interstitial impurities (oxygen, nitrogen and carbon) to the minimum possible levels, preserving the mechanical integrity and the passive oxide layer that gives corrosion protection.

Quality Assurance and Traceability

All of the bars we manufacture are subject to raw material inspection, vacuum melting and forging, controlled rolling, final dimensional inspection and approved packing. We are ISO 9001:2015 Quality Management System Certified and each step is controlled with complete material traceability documents provided with each shipment. Procurement teams for regulated sectors such as medical devices and aircraft will have no doubt that compliance records for pure niobium round bars are accurate.

Why Corrosion Resistance Makes Pure Niobium the Preferred Choice

Corrosion of industrial equipment is not consistent. The material reaction for pitting, intergranular attack, and stress corrosion cracking are all distinct. Niobium's protective mechanism is delightfully simple: exposure to oxygen—even minimal quantities in ambient air—immediately generates a persistent Nb₂O₅ oxide coating. This layer is tenacious, self mending and electrically inert as opposed to iron oxide which flakes off exposing new metal. It is resistant to intense hydrochloric acid, nitric acid, sulfuric acid at moderate temperatures and most organic acids with no appreciable dissolution.Here are the corrosion performance features that distinguish niobium over typical alternatives:

• Broad pH acid immunity Niobium resists assault in hydrochloric, sulfuric and phosphoric acids at circumstances that degrade 316L stainless steel in weeks. That’s why chemical process engineers dealing with harsh chemicals use niobium valve stems and heat exchanger tubing.
• Resistance to pitting and crevice corrosion: The thick Nb₂O₅ passive coating does not dissolve in chloride-rich conditions as do austenitic stainless steels, making niobium bars ideal for use in marine-adjacent and coastal petrochemical complexes.
• High temperature stability: Corrosion resistance is maintained up to roughly 200°C in liquid conditions. Above that level processing has to move to vacuum or inert gas settings to safeguard the metal from oxidation embrittlement.

These features result to real operational advantages. Multi-year component lifecycles are reported in chemical processing facilities with niobium internals in conditions that rapidly demanufacture stainless steel assemblies. Its resistance to galvanic attack when connected to titanium structures makes it suitable for aerospace subassemblies. The corrosion immunity and biocompatibility of niobium in physiological saline conditions are highly valued by medical implant producers.

Comparison: Pure Niobium Round Bars vs Other Materials

Selecting the right refractory metal requires a clear-eyed look at trade-offs. The table below summarizes the most relevant comparisons for B2B procurement decisions involving pure niobium round bars.

Tantalum offers a marginal advantage in acid resistance, especially in concentrated sulfuric acid at 150°C, but its density and cost premium render it unfeasible for weight-sensitive or cost-sensitive designs. Titanium Grade 2 has excellent corrosion resistance and is less expensive but is susceptible to reducing acids and high chloride conditions where niobium is strong. While Nb-1Zr and other niobium alloys increase high-temperature creep resistance, they add production complexity and expense for applications not exposed to temperatures above 1,000°C. For most chemical industrial, electronic and mid-range aerospace applications, the best combination of performance, machinability and procurement economics is provided by unalloyed niobium at >=99.9% purity.

How to Procure Pure Niobium Round Bars Efficiently

Listing prices are insufficient for effective sourcing of refractory metals. Procurement managers should consider suppliers’ adherence to ASTM B392, ISO 9001:2015 certification, proven electron beam or vacuum arc melting capabilities and capacity to provide third-party material certificates. Minimum order quantities, lead times and dimensional flexibility all effect the schedule of the project and the final landed cost. At Chuanghui Daye, we have the flexibility to manufacture small-batches or bulk orders of pure niobium round bars, which is a great advantage for R&D teams testing prototype components and manufacturing lines that are running continuous production. Our plant is located in Baoji High-tech Development Zone, the core of titanium and rare metal manufacturing in China, where a perfect logistical system ensures dependable worldwide shipping. Surface finish polished or as-rolled. Custom diameters from 1 to 50 mm and special lengths up to 1,000 mm are available upon request. Inspected against documented quality records before shipment.

Maximizing the Benefits of Niobium Bars in Your Applications

Proper handling and matching applications are a function of the value you get from a niobium investment. Niobium should be kept separate from ferrous metals to avoid cross-contamination. Water-soluble coolants, aggressive chip loads and high-speed steel equipment are preferred for machining to avoid galling. Any heat treatment or high temperature forming has to be done in vacuum or high quality argon in an effort to avoid absorption of oxygen over 200 °C.The largest demand for niobium round bars today is in electronics manufacturing, where high purity niobium is used as sputtering target feedstock and as capacitor-grade material; in chemical processing, where corrosion-resistant shafts, bayonet heaters and valve bodies extend maintenance intervals dramatically; and in medical device production, where biocompatibility meets the stringent requirements for implant-grade materials. Superconducting radio frequency cavities for particle accelerators and MRI systems need high purity bar stock as the crucial raw material. There is a growing demand for RRR-grade niobium for this purpose. Investment in certified high purity niobium bars of a qualified supplier minimizes rework rates, prolongs the service life of components and reduces the overall ownership cost for all these industries.

Conclusion

With its self-healing oxide coating, wide acid resistance, and demonstrated mechanical ductility, niobium is one of the most reliable alternatives for corrosion-critical applications in chemical processing, electronics, aerospace, and medical production. That performance is based on high purity, at or over 99.9% Nb, and requires stringent production standards to realize consistently. Chuanghui Daye delivers verified, traceable pure niobium round bars with the dimensional flexibility and technical assistance demanded by demanding procurement projects. Niobium is a safe bet when material failure is not an option.

FAQ

Q: What purity level is necessary for effective corrosion resistance in niobium bars?

A: Nb ≥99.9% purity is the accepted industrial standard for corrosion-critical applications. At this purity level, interstitial impurities—oxygen, nitrogen, and carbon—remain low enough that the passive Nb₂O₅ oxide film forms uniformly and regenerates reliably after mechanical disturbance.

Q: Are custom diameters and lengths available for specialized engineering needs?

A: Yes. Chuanghui Daye supplies niobium round bars in diameters from 1 mm to 50 mm and lengths up to 1,000 mm, with further customization available on request. Small-batch prototype orders and large production runs are both accommodated under the same quality management framework.

Q: How does niobium compare to stainless steel for long-term corrosion durability?

A: Stainless steel relies on a chromium oxide passive film that breaks down in reducing acid environments and chloride-rich media. Niobium's Nb₂O₅ film is chemically stable across a broader acid spectrum, including hydrochloric and dilute sulfuric acids, where 316L stainless steel corrodes rapidly. For high-consequence environments, the lifecycle cost advantage of niobium is substantial.

Q: Can niobium bars be used in high-vacuum electronic applications?

A: Yes. A polished surface finish (Ra <0.8 µm) minimizes outgassing in vacuum environments. High-purity niobium bars are widely used as sputtering target feedstock and electrode material in semiconductor and PVD coating systems.

Partner with Chuanghui Daye — Your Trusted Pure Niobium Round Bars Supplier

Shaanxi Chuanghui Daye brings over 30 years of rare metal expertise and ISO 9001:2015 certification to every order. Our pure niobium round bars are manufactured under strict vacuum melting protocols, fully traceable, and available in custom dimensions to match your exact engineering specifications. Whether you need small research batches or large production volumes, we deliver competitive factory-direct pricing with reliable lead times. Reach out to our technical team today at info@chdymetal.com or visit www.chdymetal.com to request a quote.

References

1. ASM International. ASM Handbook, Volume 2: Properties and Selection—Nonferrous Alloys and Special-Purpose Materials. ASM International, 1990.

2. ASTM International. ASTM B392: Standard Specification for Niobium and Niobium Alloy Bar, Rod, and Wire. ASTM International, 2019.

3. Schemel, J. H. ASTM Manual on Zirconium and Hafnium. ASTM International, 1977.

4. Carlen, J.-C., and B. S. Marshak. "Niobium in Corrosion-Resistant Applications." Journal of Metals, vol. 46, no. 6, 1994, pp. 26–29.

5. Savitzky, E. M., and G. S. Burkhanov. Metal Alloys with Special Properties. Metallurgy Publishers, 1984.

6. Kolster, B. H. "Corrosion Behavior of Refractory Metals in Acid Media." Corrosion Science, vol. 25, no. 8–9, 1985, pp. 677–692.
