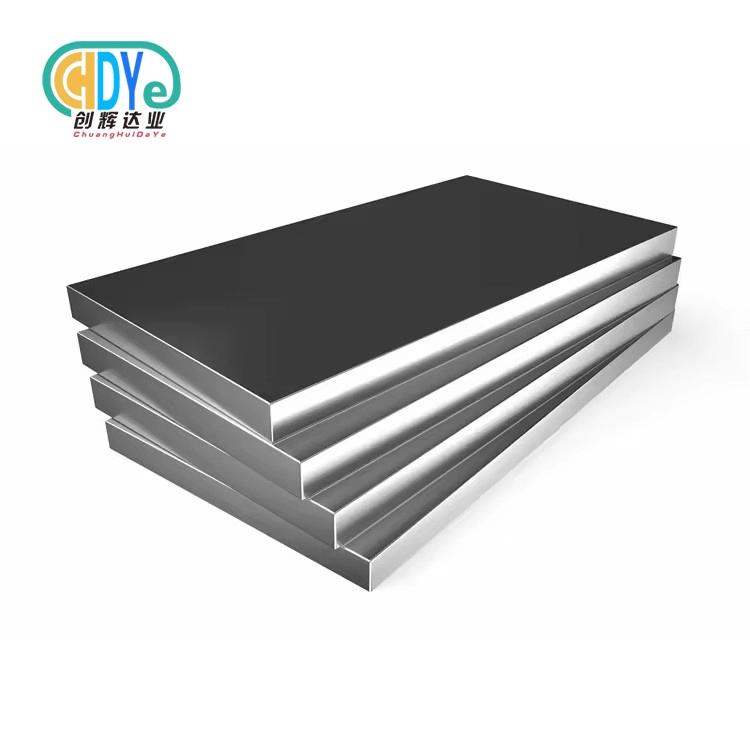

Understanding Ti-6Al-4V Titanium Sheets for Precision Machining

When engineers are looking for materials that work really well in very precise cutting tasks, Ti-6Al-4V Titanium Sheet is always the best choice. As a result of its high mechanical strength, resistance to corrosion, and ease of workability, this α+β titanium metal is essential in the medical, industrial, and aircraft fields. Manufacturers can use this alloy to its fullest potential when they understand its unique properties and abilities. This lets them make precision parts that can survive harsh working conditions while still being true to size.

Overview of Ti-6Al-4V Titanium Sheets

Chemical Composition and Microstructure

Titanium Grade 5 sheets are very good because their chemicals are carefully matched. This metal has a dual-phase lattice that makes it stronger and more flexible. It is made up of 6% aluminum and 4% vanadium. The aluminum content makes the alpha phase stronger while lowering its mass. The vanadium content stabilizes the beta phase, which makes it more resistant to heat and easier to work with. This mix makes a material with a density of 4.43 g/cm³ that is much lighter than steel but still has better tensile properties. The managed microstructure is made up of evenly spaced alpha stages that are spread out in a changed beta matrix. This design gives great resistance to fatigue and crack spread, which are important qualities for precision-machined parts that are loaded and unloaded many times.

Mechanical Properties and Performance

Titanium Grade 5 has amazing engineering properties that make it stand out from other materials. The metal has a minimum tensile strength of 895 MPa (130 ksi) and a minimum yield strength of 828 MPa (120 ksi). It usually stretches between 10 and 15 percent. Because of these qualities, makers can make parts that are strong but not too heavy, and they will work effectively when they are under stress. The material's high wear strength is especially useful in dynamic situations where parts are loaded and unloaded many times. Also, its low elastic stiffness of about 113.8 GPa is very similar to that of human bone, which makes it perfect for medical implant uses where stress protection needs to be kept to a minimum.

Corrosion Resistance and Environmental Stability

Very good protection against corrosion is one of the best things about this titanium metal. When the material is exposed to oxygen, it instantly forms a solid, continuous oxide film. This makes it almost impossible for saltwater, marine atmospheres, and some organic acids to break it down. This natural passivation makes it possible for the material to work reliably in hard conditions where other materials would break down quickly. The alloy keeps its mechanical qualities at high temperatures up to 400°C (750°F), which means it can be used in thermal systems in aircraft and cars. This temperature stability, along with its corrosion resistance, makes it reliable over time, even in tough working circumstances.

Comparing Ti-6Al-4V with Other Titanium and Metallic Sheets

Performance Against Other Titanium Alloys

When Grade 5 titanium is compared to other titanium metals, clear benefits become clear. In contrast to Ti-3Al-2.5V, which has lower strength, Ti-6Al-4V Titanium Sheet has higher tensile and yield strengths while still being easy to shape. Compared to Ti-6Al-7Nb, the Grade 5 metal with vanadium is easier to heat treat and has more potential to become stronger through solution treating and aging. Extra Low Interstitial (ELI) Grade 5 titanium is more ductile and harder to break because the levels of oxygen, nitrogen, and carbon are more tightly controlled. This version keeps the same level of strength while performing much better at cryogenic temperatures. This means it can be used in more specialized science and military uses.

Advantages Over Conventional Materials

When compared to standard materials, these new ones have big benefits. While stainless steel is good at resisting rust, titanium Grade 5 is stronger for its weight and is biocompatible. Even though aluminum metals are light, they can't compete with titanium sheets when it comes to performance at high temperatures and resistance to rust. Because titanium has a higher ratio of weight to strength, it is very useful in aerospace uses, where every gram saved means more fuel economy and more payload capability. The material is more resistant than most stainless steel types to stress corrosion cracking caused by chloride in coastal settings.

Manufacturing and Fabrication Considerations

Fabrication qualities are very important when choosing a material. When the right cutting settings and tool materials are used, Grade 5 titanium is easy to machine. The metal can be machined easily, but for longer tool life and better surface finish, it's best to cut more slowly and use the right cooling techniques. Another important benefit is the ability to weld. TIG (tungsten inert gas) or electron beam methods can be used to properly weld the material without affecting its structural stability. Using the right shielding gas keeps the weld from getting contaminated, making sure it meets the strict standards of aircraft and medical devices.

Procurement Insights for Ti-6Al-4V Titanium Sheets

Quality Certification and Standards Compliance

To do a good job of procurement, you must first understand the most important quality norms and certification needs. For industrial uses, parts must usually meet ASTM B265 standards, while for aircraft uses, they must meet AMS 4911 standards. For biocompatible uses, medical gadget makers need to be certified by ASTM F136. These standards make sure that the same materials are used, that they can be tracked, and that the same materials work the same way across different sources and output batches. For each quality approval, there are strict testing procedures that include analyzing the chemical makeup, checking the mechanical properties, and looking at the substructure. Reliable providers give full mill test certificates that list all the important properties and prove that the product meets the standards.

Supplier Evaluation and Selection Criteria

To find trusted providers, you need to carefully consider more than just the price at first. When judging a company's manufacturing potential, you should look at its technical know-how, production capacity, and quality control systems. Strong quality management systems are shown by ISO 9001:2015 certification, while certifications for the medical or aircraft industries show expertise in those fields. In today's world market, supply chain stability is becoming more and more important. Suppliers who already have links with suppliers of raw materials and who can produce in a variety of ways can better meet the needs of pressing projects and changes in volume. Shipping prices and wait times are affected by where the goods are located, especially for large orders that need special handling and packaging.

Customization Options and Delivery Flexibility

Today's industrial needs often go beyond standard sheet sizes and specs and call for customized ones. To meet the needs of different applications, top providers offer cutting services, custom thickness rolling, and surface finishing choices. These value-added services can cut handling costs and shipping times by a large amount further down the line. Flexibility in delivery schedules allows for changes in project timelines and inventory management strategies. For makers with complicated production plans, suppliers that offer delayed deliveries, just-in-time shipping, and emergency expediting services are very helpful.

Applications and Benefits of Ti-6Al-4V Titanium Sheets in Precision Machining

Aerospace and Defense Applications

It is very important for the aircraft business to use Ti-6Al-4V Titanium Sheet for important structural parts that need to be light and reliable. Manufacturers of airplanes use these sheets to make body frames, wing structures, and engine parts that need to be able to handle big changes in temperature and mechanical pressures. The material is very resistant to wear, which means that parts will last a long time even when they are loaded and unloaded many times, which is common in flight operations. For defense uses, the alloy's ability to resist bullets and last in harsh environments makes it useful for making parts of protected vehicles and rocket structures. High strength and resistance to corrosion are both very important for military equipment that works in a wide range of world settings.

Medical Device Manufacturing

Grade 5 titanium is being used more and more by medical device makers for implantable devices and surgical tools. The material is biocompatible, which means it doesn't respond badly with tissue, and its elastic stiffness is very close to that of human bone, which means it doesn't protect against stress as well in orthopedic implants. Precision cutting lets you make the complicated shapes that are needed for modern medical gadgets. The alloy is useful for medical tools used in MRI rooms because it is not magnetic, and its radiolucent qualities make it easy to see what's going on inside tissues. These qualities make it possible to use them in more medical fields.

Industrial and Automotive Applications

Manufacturers of industrial tools use titanium sheets for parts that are exposed to poisons and high temperatures that can damage them. The material is very good at resisting corrosion and keeping its strength at high temperatures, which makes it useful for chemical processing equipment, heat exchanges, and pressure tanks. Automotive uses are mostly limited to high-performance and race cars, where losing weight gives them an edge in the competition. Titanium pieces are used to make exhaust systems, suspension parts, and engine parts that work better than parts made from other materials.

How Ti-6Al-4V Titanium Sheets Are Made: From Raw Material to Finished Product

Primary Production Processes

Preparing the raw materials and melting them are the first steps in making Ti-6Al-4V Titanium Sheet. To make sure that the chemicals are all the same and there is as little leakage as possible, vacuum arc remelting (VAR) or electron beam melting is usually used for primary melting. These advanced melting ways get rid of flaws and get the exact composition needed for materials to have consistent qualities. After the first melting, the material goes through shaping steps to break up the cast structure and make the grains face in the right direction. Forging something hot, between 900°C and 1000°C, improves the texture while keeping it workable for further processing.

Rolling and Forming Operations

To get the right width, sheets are made through a series of hot rolling and cold rolling steps. The first hot rolling lowers the thickness while keeping the temperature steady to stop the grains from growing too much. Intermediate annealing processes lower internal pressures and make the material flexible again so that it can be processed further. When you roll something cold, you can precisely control the width and get a better finish on the surface. Advanced cross-rolling methods make sure that the qualities are uniform and that the flatness tolerances are high, which are necessary for precision cutting. The last annealing steps improve the tensile qualities and relieve stress.

Quality Control and Testing Protocols

A lot of quality control steps make sure that every sheet meets the strict requirements. Spectroscopic methods used for chemical makeup research confirm that the amount of elements is within certain limits. The tensile strength, yield strength, and stretch qualities all meet standard requirements after being tested mechanically. Ultrasonic screening and other non-destructive testing methods find internal breaks that could affect performance. Surface screening procedures check for accuracy in dimensions, flatness, and roughness. Each package comes with all the necessary paperwork to make sure it can be tracked and that the standard is met.

Conclusion

Ti-6Al-4V Titanium Sheet solutions are the best choice for precise cutting tasks that need high strength, resistance to rust, and dependability. The alloy has a special mix of mechanical qualities, environmental stability, and production flexibility that makes it possible to make high-performance parts for the medical, military, and industrial sectors. Engineers can use the material to its fullest potential in difficult situations where performance can't be compromised if they know about its properties, how to get it, and how it is made.

FAQ

Q: What makes Ti-6Al-4V different from other types of titanium alloys?

A: Ti-6Al-4V stands out because it has a dual-phase α+β microstructure, which makes it strong and flexible at the same time. The 6% aluminum makes the material stronger while also making it lighter, and the 4% vanadium makes it more resistant to heat and easier to work with. This mix gives it better mechanical qualities than widely pure titanium grades, while still making it very resistant to corrosion and safe for living things.

Q: How can I be sure that the seller is real and has the right credentials?

A: Reliable providers give full paperwork, such as mill test records, chemical composition analyses, and proof of mechanical properties. Check that the company has ISO 9001:2015 approval and follows industry standards like ASTM B265 or AMS 4911. Ask current customers for examples, and if you can, visit the production plant or have a third party do an audit to make sure it can do what it's supposed to do.

Q: How long do wait times usually take, and how many items do I need to order?

A: Lead times depend on the thickness, size, and amount of demand of the sheet, but for normal specifications, they are usually between 4 and 12 weeks. For standard sizes, the minimum order quantity is usually 100 kg, but some specialized providers may be able to handle smaller amounts for research or prototyping needs. Longer wait times and higher minimum orders may be needed for custom sizes and specs.

Partner with Chuanghui Daye for Premium Ti-6Al-4V Titanium Solutions

Shaanxi Chuanghui Daye offers top-notch Ti-6Al-4V Titanium Sheet options and has more than 30 years of experience in the rare metals business. Our plant is ISO 9001:2015 approved and is located in China's Titanium Capital. This guarantees stable quality and reliable supply chain performance. Get in touch with our technical team at info@chdymetal.com to talk about your unique needs and get reasonable prices from a reliable Ti-6Al-4V Titanium Sheet supplier that is dedicated to making the best products.

References

1. Boyer, R., Welsch, G., and Collings, E.W. "Materials Properties Handbook: Titanium Alloys." ASM International, Materials Park, Ohio, 1994.

2. Donachie, Matthew J. "Titanium: A Technical Guide, 2nd Edition." ASM International, Materials Park, Ohio, 2000.

3. Lutjering, G. and Williams, J.C. "Titanium: Engineering Materials and Processes." Springer-Verlag, Berlin, Germany, 2003.

4. Peters, M., Hemptenmacher, J., Kumpfert, J., and Leyens, C. "Structure and Properties of Titanium and Titanium Alloys." Titanium and Titanium Alloys: Fundamentals and Applications, 2003.

5. Rack, H.J. and Qazi, J.I. "Titanium Alloys for Biomedical Applications." Materials Science and Engineering: C, Volume 26, Issues 8, 2006.

6. Welsch, G., Boyer, R., and Collings, E.W. "Materials Properties Handbook: Titanium Alloys Processing." ASM International, Materials Park, Ohio, 1993.
