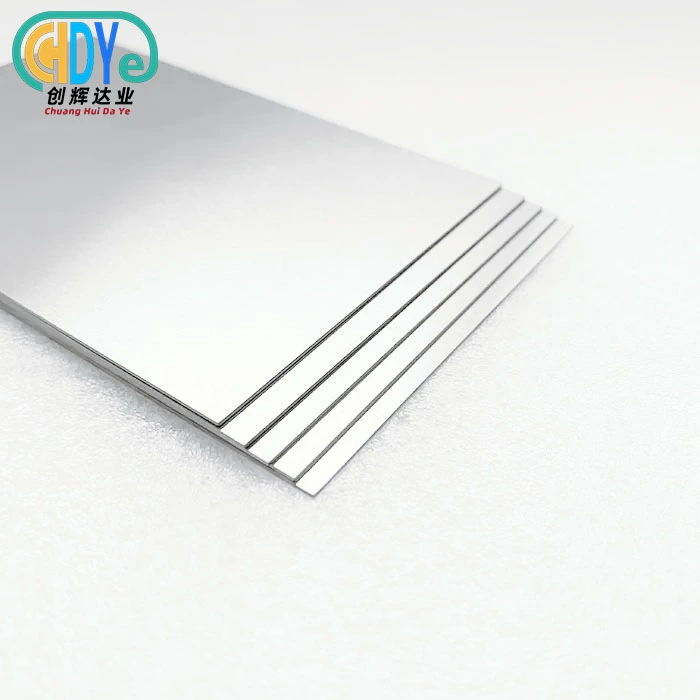

Where to Buy Tantalum Metal Plate for Industrial Use

If you need tantalum metal plate for demanding industrial applications, the surest way is to deal directly with a recognized producer with ASTM B 708 compliance and ISO 9001:2015 certification. Specialist rare metal manufacturers in China, the US, and Europe are able to provide quality-grade tantalum plate, often to a purity of 99.95%. Chuanghui Daye, located in Baoji, China’s acknowledged rare metal center, offers flat-rolled tantalum products with complete traceable documentation, variable sizes, and affordable factory-direct pricing to clients in North America and throughout the world.

How to Choose the Right Tantalum Plate for Your Industrial Needs

Selecting a tantalum flat product is not simply a matter of picking a thickness. The operating environment, applicable standard, purity grade, and downstream processing requirements all shape the final specification.

Matching Specifications to Application Requirements

Chuanghui Daye's tantalum metal plate conforms to ASTM B 708, the industry benchmark governing chemical composition, mechanical properties, and dimensional tolerances for unalloyed tantalum sheet, strip, and plate. The available specification range covers:

• Thickness: 0.5 mm – 30 mm
• Width: 10 mm – 2,500 mm
• Length: 30 mm – 3,000 mm
• Purity: 99.95% minimum (UNS R05200 grade)

These parameters accommodate everything from thin capacitor-grade sheet to heavy plate for reaction vessel liners. When evaluating any supplier, confirm that mill test reports reference ASTM B 708 explicitly and that chemical composition data covers all residual elements—not just tantalum content.

Comparing Tantalum Against Alternative Refractory Metals

A straight comparison may assist in showing where tantalum is better than its closest rivals. Titanium is lighter and cheaper, but loses its corrosion resistance in severely reducing acid conditions. Niobium has many of the same electrical characteristics as tantalum, but at a lesser cost, and it is not as acid-resistant at higher temperatures. Stainless steel is useful structurally but not for use in the presence of intense sulfuric or hydrochloric acid. Tungsten is tougher yet brittle and difficult to manufacture into a plate shape. Tantalum is a unique material and the material of choice when failure is not an option.

Where to Buy Tantalum Metal Plates: Reliable Suppliers and Market Options

The worldwide supply chain of tantalum plate is somewhat concentrated. Primary manufacturers smelt tantalum powder into ingots. These are hot- and cold-rolled into flat products. In the United States, the usual sources are domestic wholesalers, European specialty metal businesses, or straight from Asian sources with verified export capacity.

Evaluating Manufacturer vs. Distributor Channels

Buying directly from a manufacturer such as Chuanghui Daye removes the distributor markup and gives direct access to engineering and quality teams. At one site in the Baoji High-tech Development Zone, the business runs electron beam furnaces, rolling mills, annealing furnaces, and complete machining lines comprising lathes, shearing machines, and grinding equipment. This integrated approach enables more flexible customisation and shorter lead times than multi-step distributor chains.

Facility processing capabilities: Hot rolling, Cold rolling, Precision cutting, Forming, Drilling and machining, grinding, and polishing. The plates are subjected to a systematic inspection procedure including dimension checks, surface condition, chemical composition, and mechanical properties. Each purchase is sent with full traceability paperwork to meet aerospace, chemical, and medical procurement documentation standards.

B2B platforms may bring a broad selection of tantalum metal plate suppliers, but it doesn’t mean that certification credentials and manufacturing capacity can be verified via such channels without further scrutiny. Experienced procurement people will ask for ISO certifications, ASTM-compliant mill test reports, and sample test data before placing a volume purchase, as is common procedure.

Ensuring Quality and Trust When Buying Tantalum Plates

Quality assurance in rare metal procurement goes beyond checking a specification sheet. The stakes in chemical processing or aerospace applications mean that a sub-standard plate can trigger equipment failure, production shutdowns, or regulatory non-compliance.

Chuanghui Daye has ISO 9001:2015 Quality Management System Certification, which means that there is documented control at every step of manufacturing – from raw material inspection to melting, forging, machining, and final packing. This is not a cosmetic certification, but each batch has a quality record that can be audited by procurement teams.

The firm was created by an industry veteran with over 30 years of expertise in rare metal manufacture, and is based in Baoji, the city with the biggest concentration of titanium and refractory metal production capability in China. That ecosystem of industry means access to a steady supply of raw materials, technical staff with specialized knowledge, and logistical infrastructure already built out for worldwide distribution.

When evaluating any supplier of tantalum plate, ask for documented test results for the particular heat or lot, verify that purity is determined by spectrographic analysis and not calculated by subtraction, and confirm that the producer can meet your dimensional tolerances without causing stress from improper heat treatment.

Conclusion

Tantalum metal plates are used in chemical processing, electronics, aerospace, and medical production because their physical and chemical qualities are unsurpassed in harsh conditions and are important to the performance of those industries. When looking for a trusted source, consider certification, manufacturing capabilities, standards of documentation, and the supplier's ability to provide bespoke dimensions on a predictable timetable. Chuanghui Daye serves worldwide customers with confidence – thanks to its direct production capacity, ASTM B 708 compliance, ISO 9001:2015, and decades of rare metal experience. The proper sourcing selection starts with the appropriate discussion.

FAQ

1. What is the minimum order quantity for tantalum plate?

Shaanxi Chuanghui Daye accommodates both small-batch R&D orders and large-volume industrial procurement. Minimum order quantities vary by thickness and dimension, so contacting the team directly with your specification yields the most accurate answer.

2. How long does a custom tantalum plate order typically take?

Lead times depend on dimensions, quantity, and processing complexity. Standard cut-to-size orders on stocked dimensions generally ship faster than fully custom-rolled plates. Buyers with urgent project timelines should communicate deadlines upfront so the production team can prioritize accordingly.

3. How do I verify that a tantalum plate meets ASTM B 708?

Request the mill test report for the specific lot. The document should identify the heat number, chemical composition results for all specified elements, mechanical test values, and the standard reference. Cross-checking lot numbers against physical markings on the plate is standard practice.

4. What applications are tantalum plates most commonly used for?

Industrial applications include chemical processing vessels, heat exchangers, capacitor components, semiconductor sputtering targets, hard-metal tooling alloys, electronic systems, wind turbine components, and surgical implants.

5. Is 99.95% purity sufficient for semiconductor applications?

For most sputtering target and diffusion barrier applications, 99.95% (3N5) purity meets process requirements. Higher purity grades exist for ultra-sensitive applications; discuss your exact process conditions with a technical representative.

Request a Quote from Chuanghui Daye — Tantalum Metal Plate Manufacturer

Shaanxi Chuanghui Daye delivers ISO 9001:2015-certified tantalum metal plate to industrial buyers worldwide, with specifications from 0.5 mm to 30 mm thickness and full ASTM B 708 compliance. Whether you need prototyping quantities or long-term volume supply, our team provides responsive technical support and competitive factory-direct pricing. Send your drawing or specification to info@chdymetal.com to start your inquiry today.

References

1. ASTM International. ASTM B708: Standard Specification for Tantalum and Tantalum Alloy Plate, Sheet, and Strip. ASTM International, 2022.

2. Savitzky, A., & Gupta, C. K. Extractive Metallurgy of Niobium, Tantalum, and Vanadium. CRC Press, 1994.

3. Cardarelli, F. Materials Handbook: A Concise Desktop Reference. Springer, 2008.

4. ASM International. ASM Handbook, Volume 2: Properties and Selection: Nonferrous Alloys and Special-Purpose Materials. ASM International, 1990.

5. Lide, D. R. (Ed.). CRC Handbook of Chemistry and Physics, 97th Edition. CRC Press, 2016.

6. U.S. Geological Survey. Mineral Commodity Summaries: Tantalum. U.S. Department of the Interior, 2023.
