Titanium Basket vs Stainless Steel – Corrosion Resistance

When choosing between titanium baskets and stainless steel for corrosion-resistant applications, titanium baskets emerge as the superior choice for harsh chemical environments. While stainless steel offers adequate performance in mild conditions, titanium baskets provide exceptional resistance to acids, alkalis, and chloride solutions. This fundamental difference makes titanium containers the preferred option for electroplating, chemical processing, and medical applications where material integrity directly impacts operational success.

Understanding Material Composition and Corrosion Mechanisms

The difference in rust resistance between these materials comes from the chemicals that make them up. Titanium naturally creates a layer of protective oxide that heals itself when it gets broken, making it a better barrier. This passive film doesn't change much when the pH level changes from very acidic to very basic.

The chromium element of stainless steel keeps it from rusting. Standard 316L stainless steel has between 16 and 18% chromium in it. But this defense system doesn't work when exposed to some chemicals, especially chloride-based solutions that are popular in industrial processes.

Three core differences define their performance:

1. Titanium develops instantaneous oxide reformation
2. Stainless steel experiences localized corrosion in chloride environments
3. Temperature variations affect stainless steel stability more significantly

Testing data from ASTM G48 chloride exposure tests show titanium Grade 2 maintains zero weight loss after 72-hour exposure to 6% ferric chloride solution at 50°C. Comparable stainless steel samples demonstrated measurable pitting and weight reduction under identical conditions.

If you need containers for chloride-rich environments, then titanium mesh baskets provide superior long-term reliability compared to stainless steel alternatives.

Chemical Resistance Performance Analysis

For industrial uses, materials need to be able to handle strong chemicals without breaking down. Titanium baskets work great in places where other materials would fail horribly.

The huge difference in performance between these materials is shown by their resistance to hydrochloric acid. Titanium keeps its shape in HCl solutions that are up to 10% concentrated at room temperature. In the same conditions, amounts as low as 1% to 2% start to cause corrosion in stainless steel.

Another big benefit is that alkaline resistance is present. Titanium containers are very stable in liquids of sodium hydroxide that are up to 50% concentrated and at high temperatures. Because of this ability, they can be used in:

• Electroplating bath applications
• Chemical cleaning processes
• Water treatment systems
• Pharmaceutical manufacturing

Laboratory testing according to ASTM G31 immersion protocols reveals titanium's corrosion rate remains below 0.1 mm/year in most industrial chemicals. Stainless steel corrosion rates can exceed 1.0 mm/year in identical environments, representing a ten-fold performance difference.

If you need equipment for multi-chemical processing lines, then titanium alloy baskets offer unmatched versatility across diverse chemical exposures.

Temperature and Environmental Factors

Operating temperature significantly influences corrosion behavior in both materials. Titanium maintains protective properties across broader temperature ranges, making it ideal for applications involving thermal cycling or elevated operating temperatures.

High-temperature oxidation resistance shows titanium's advantage in air exposure up to 600°C. The material forms stable oxide scales that prevent further oxidation. Stainless steel begins experiencing accelerated oxidation above 400°C in similar atmospheres.

Stress corrosion cracking represents a critical failure mechanism affecting stainless steel under combined mechanical and chemical stress. Titanium demonstrates superior resistance to this phenomenon, particularly in chloride environments where stainless steel becomes vulnerable.

Environmental factors affecting performance include:

1. Humidity levels and condensation cycles
2. Chemical concentration variations
3. Mechanical stress from thermal expansion
4. Surface contamination from processing residues
5. Galvanic coupling with dissimilar metals

Testing data from aerospace applications shows titanium components maintain structural integrity after 10,000 thermal cycles between -54°C and 150°C. Similar stainless steel components showed fatigue cracking after fewer than 5,000 cycles under identical conditions.

If you need baskets for high-temperature chemical processes, then titanium containers provide superior thermal stability and corrosion resistance.

Cost-Benefit Analysis and Lifecycle Economics

Initial material costs present the primary consideration when selecting between titanium and stainless steel solutions. Titanium baskets typically cost 3-5 times more than comparable stainless steel units. However, lifecycle analysis reveals titanium's economic advantages become apparent through extended service life and reduced maintenance requirements.

Replacement frequency analysis from chemical processing facilities shows:

• Titanium baskets: Average service life 8-12 years
• Stainless steel baskets: Average service life 2-3 years
• Titanium maintenance intervals: Annual inspection
• Stainless steel maintenance: Quarterly replacement of corroded components

Operational cost factors include downtime for replacement, disposal of corroded materials, and contamination risks from material degradation. Stainless steel failure can introduce iron contamination into processes, requiring expensive cleanup and product rework.

Quality control expenses decrease significantly with titanium implementation. The material's stability eliminates concerns about gradual degradation affecting product quality. This reliability proves particularly valuable in pharmaceutical and semiconductor applications where contamination tolerance approaches zero.

If you need predictable operating costs and minimal maintenance interventions, then titanium filter baskets deliver superior long-term value despite higher initial investment.

Application-Specific Recommendations

Different industries present unique requirements that favor specific material choices based on operational demands and performance criteria.

Electroplating applications benefit tremendously from titanium's electrical conductivity and chemical inertness. Titanium anode baskets maintain consistent current distribution while resisting attack from plating solutions. The material's non-reactive nature prevents contamination of plating baths, ensuring consistent coating quality.

Medical device sterilization requires materials that withstand repeated autoclave cycles without degradation. Titanium surgical baskets maintain dimensional stability and surface finish through thousands of sterilization cycles. The biocompatible nature eliminates concerns about material migration into sterile environments.

Chemical processing applications involving mixed acids or varying pH conditions favor titanium's broad chemical compatibility. A single titanium container can handle multiple process streams without material compatibility concerns that limit stainless steel applications.

Water treatment systems processing chlorinated water benefit from titanium's chloride resistance. Municipal treatment facilities report titanium components lasting decades in chlorinated environments where stainless steel requires frequent replacement.

If you need versatile containers for multi-purpose chemical handling, then titanium wire baskets provide unmatched material compatibility across diverse applications.

Chuanghui Daye Titanium Basket Advantages

Shaanxi Chuanghui Daye Metal Material Co., Ltd. offers premium titanium baskets engineered for superior performance in demanding industrial applications. Our manufacturing expertise combines advanced materials science with precision fabrication techniques.

Material Quality Excellence:

• Grade 1 and Grade 2 titanium with 99.7% purity ensures maximum corrosion resistance
• Strict adherence to ASTM standards for chemical composition and mechanical properties
• Complete material traceability from raw material source through finished product delivery
• Advanced electron beam melting ensures homogeneous material structure
• Zero inclusion content verified through ultrasonic testing protocols

Manufacturing Process Advantages:

• Argon arc welding technology creates leak-proof joint integrity
• Precision mesh tensioning maintains uniform basket geometry
• Custom sizing capabilities accommodate unique application requirements
• Anti-theft design modifications available for high-security applications
• Quality control inspection at every production stage ensures consistent performance

Design Innovation Features:

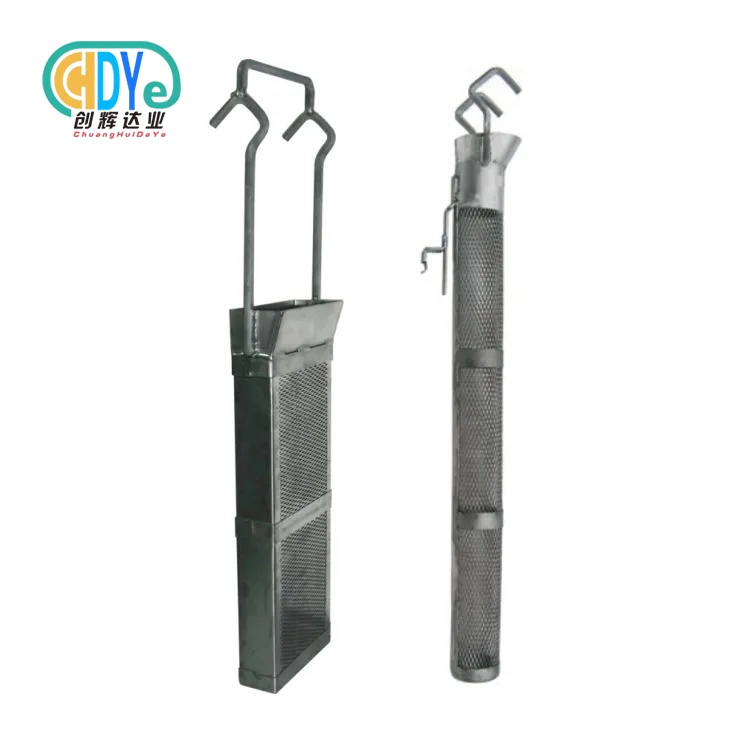

• Three-component construction (titanium mesh plate, frame plate, hook) optimizes strength distribution
• Engineered mesh density balances flow characteristics with structural integrity
• Hook design prevents accidental displacement during operation
• Frame construction allows easy handling and positioning
• Modular design enables field replacement of individual components

Technical Support Services:

• Engineering consultation for application-specific design optimization
• Chemical compatibility verification for unique process environments
• Installation guidance and operational best practice recommendations
• Ongoing technical support throughout product lifecycle
• Custom modification services for evolving application requirements

Quality Assurance Standards:

• ISO 9001:2015 certification ensures consistent quality management
• Comprehensive testing protocols verify corrosion resistance performance
• Documentation packages include material certificates and performance data
• Inspection reports provide complete quality verification
• Compliance with international standards for medical and food processing applications

Manufacturing Capabilities:

• Rapid prototyping services for design validation
• Small-batch production for specialized applications
• Large-scale manufacturing for industrial implementations
• Flexible scheduling accommodates urgent project timelines
• Global shipping capabilities with protective packaging protocols

Competitive Advantages:

• Located in China's "Titanium Capital" ensuring optimal supply chain access
• Over 30 years of rare metal industry experience guides design decisions
• Factory-direct pricing eliminates distributor markup
• Comprehensive inventory reduces lead times for standard configurations
• Continuous improvement programs enhance product performance

If you need reliable titanium containers backed by proven manufacturing excellence, then Chuanghui Daye's engineering expertise and quality commitment provide the foundation for successful long-term partnerships.

Conclusion

Titanium baskets demonstrate superior corrosion resistance compared to stainless steel across virtually all industrial applications. The material's exceptional chemical inertness, temperature stability, and mechanical properties justify the initial investment through extended service life and reduced maintenance costs. While stainless steel remains suitable for mild environments, titanium provides unmatched performance in aggressive chemical conditions. The decision ultimately depends on balancing upfront costs against long-term operational requirements and quality standards.

Partner with Chuanghui Daye for Superior Titanium Baskets

Shaanxi Chuanghui Daye Metal Material combines three decades of rare metal expertise with advanced manufacturing capabilities to deliver titanium baskets that exceed performance expectations. Our ISO 9001:2015 certified facility produces custom titanium containers engineered for your specific corrosion resistance requirements. Contact our technical team at info@chdymetal.com to discuss your application needs with a leading titanium basket manufacturer.

References

1. American Society for Testing and Materials. "Standard Practice for Laboratory Immersion Corrosion Testing of Metals." ASTM G31-21, 2021.

2. Davis, J.R. "Corrosion of Titanium and Titanium Alloys." ASM Specialty Handbook: Heat-Resistant Materials, ASM International, 2019.

3. Fontana, Mars G. "Corrosion Engineering: Third Edition." McGraw-Hill Education, 2018.

4. International Organization for Standardization. "Titanium and Titanium Alloys - Chemical Composition and Mechanical Properties." ISO 5832-2:2018.

5. Revie, R. Winston. "Uhlig's Corrosion Handbook: Third Edition." John Wiley & Sons, 2020.

6. Schutz, R.W. "Corrosion Resistance of Titanium in Industrial Applications." Materials Performance International, Vol. 58, No. 3, 2019.
