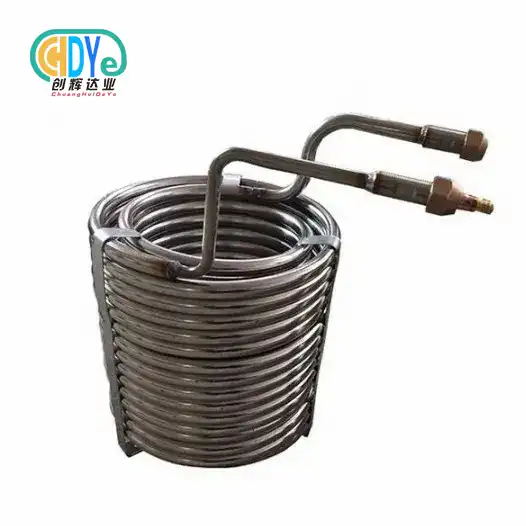

What Size Options Are Available for Titanium Coil Tubes?

Titanium coil tube size options encompass a comprehensive range of dimensions to meet diverse industrial applications. Standard outer diameters typically range from 6mm to 50mm, with wall thickness options between 0.5mm and 3mm. Coil diameters span from 100mm to 3000mm, while length specifications can extend from 1 meter to several hundred meters, depending on system requirements. Custom dimensions beyond these parameters can be achieved through specialized manufacturing processes, allowing for precise adaptation to unique heat exchangers, condensers, and chemical processing applications.

Overview of Titanium Coil Tube Sizes and Specifications

Understanding the dimensional landscape of titanium coil tubes requires examining the interplay between standardized specifications and application-specific requirements. The sizing framework operates within established industry parameters while maintaining flexibility for specialized applications across aerospace, chemical processing, and medical device manufacturing sectors.

Standard Dimensional Categories

Standard titanium coil tube dimensions follow internationally recognized classifications that ensure compatibility across global supply chains. Outer diameter specifications commonly range between 6mm and 50mm, providing adequate surface area for efficient heat transfer while maintaining structural integrity under pressure. Wall thickness variations between 0.5mm and 3mm accommodate different pressure ratings and corrosion allowances, with thinner walls maximizing heat transfer efficiency in benign environments.

Coil diameter represents another critical dimension, typically spanning 100mm to 3000mm, depending on the intended application. Smaller coil diameters suit compact heat exchanger designs, while larger diameters accommodate high-volume fluid processing systems. Length specifications demonstrate remarkable flexibility, ranging from short coils of 1-10 meters for specialized applications to extended configurations exceeding 500 meters for large-scale industrial installations.

Industry Standard Compliance

Manufacturing specifications adhere to ASTM B338 and ASTM B861 standards, which govern titanium seamless and welded tube production, respectively. These standards define dimensional tolerances, surface finish requirements, and mechanical properties that ensure consistent performance across different suppliers. ISO 5832-2 standards additionally regulate medical-grade titanium tubes, imposing stricter purity and biocompatibility requirements for surgical and implant applications.

Quality control measures encompass dimensional verification through precision measurement equipment, ensuring outer diameter tolerances within ±0.1mm and wall thickness variations below ±5%. These stringent tolerances prevent performance degradation in critical applications where dimensional accuracy directly impacts system efficiency and safety margins.

Key Factors Influencing Size Selection for Titanium Coil Tubes

Size selection for titanium coil tubes involves balancing multiple engineering considerations that directly influence system performance, operational lifespan, and economic viability. The decision-making process requires careful evaluation of thermal, mechanical, and chemical parameters specific to each application environment.

Application-Specific Requirements

Heat transfer applications demand specific size-performance relationships where tube diameter and wall thickness significantly impact thermal efficiency. Smaller diameter tubes provide higher surface-area-to-volume ratios, enhancing heat transfer coefficients but potentially increasing pressure drop penalties. Conversely, larger diameter configurations reduce pumping energy requirements while potentially compromising heat transfer effectiveness.

Pressure vessel applications impose structural constraints that influence wall thickness selection. High-pressure systems require thicker walls to maintain structural integrity, while low-pressure applications benefit from thinner walls that maximize heat transfer efficiency. The relationship between internal pressure, allowable stress, and safety factors determines minimum wall thickness requirements according to ASME Boiler and Pressure Vessel Code calculations.

Material Grade Considerations

Different titanium grades exhibit varying forming capabilities that influence achievable coil dimensions. Grade 1 and Grade 2 titanium demonstrate excellent cold forming characteristics, allowing tight coil radii and complex geometries without stress-relief annealing. Grade 5 (Ti-6Al-4V) requires careful consideration of forming stresses and may necessitate larger coil radii to prevent work hardening or cracking during fabrication.

The selection between commercially pure titanium grades and alloy compositions affects both dimensional capabilities and performance characteristics. Commercially pure grades offer superior corrosion resistance and formability, while titanium alloys provide enhanced strength properties that enable reduced wall thickness in high-stress applications.

Manufacturing Process Limitations

Coiling processes impose geometric constraints that influence minimum bend radius and maximum coil diameter capabilities. Cold coiling techniques typically achieve bend radii of 3-5 times the tube diameter without compromising structural integrity. Hot coiling processes can achieve tighter radii but require additional processing steps that may affect delivery timelines and costs.

Welding considerations for longer coil lengths influence joint placement and inspection requirements. Seamless coil production eliminates welded joints but limits maximum achievable lengths, while welded construction enables extended lengths but introduces potential weak points that require careful quality control and non-destructive testing.

Comparing Titanium Coil Tube Sizes with Other Materials

Material selection decisions involve comparing dimensional capabilities alongside performance characteristics to optimize system design and operational economics. Titanium coil tubes offer unique advantages in size-to-performance relationships that distinguish them from conventional materials in demanding applications.

Dimensional Advantages Over Alternative Materials

Titanium's superior strength-to-weight ratio enables thinner wall construction compared to stainless steel alternatives while maintaining equivalent pressure ratings. This dimensional advantage translates to improved heat transfer coefficients and reduced material costs per unit of heat transfer surface area. The corrosion resistance of titanium allows aggressive wall thickness reductions in corrosive environments where stainless steel requires substantial corrosion allowances.

Copper tubes, while offering excellent thermal conductivity, require larger wall thicknesses to achieve comparable mechanical strength. The density difference between titanium and copper results in significantly lighter coil assemblies, reducing structural support requirements and installation complexity. Aluminum alternatives demonstrate similar weight advantages but lack the high-temperature capabilities and corrosion resistance necessary for aggressive industrial environments.

Performance-Size Optimization

The unique properties of titanium enable optimization strategies unavailable with conventional materials. Smaller tube diameters become practical in titanium construction due to enhanced corrosion resistance, allowing compact heat exchanger designs without compromising service life. The fatigue resistance of titanium supports smaller coil radii under cyclic loading conditions, enabling more compact system layouts.

Long-term performance considerations favor titanium in applications where fouling resistance impacts maintenance requirements. The smooth surface finish and non-reactive nature of titanium reduce fouling accumulation, maintaining heat transfer efficiency over extended service periods without requiring oversized initial designs to compensate for performance degradation.

Procurement Considerations for Titanium Coil Tubes by Size

Successful procurement of titanium coil tubes requires understanding the relationship between size specifications, manufacturing complexity, and supply chain dynamics. Strategic planning around dimensional requirements can significantly impact project timelines, costs, and supplier selection criteria.

Lead Time Variations by Size Category

Standard size configurations typically maintain inventory availability with lead times of 2-4 weeks for common dimensions and grades. These standard sizes encompass the most frequently specified outer diameters, wall thicknesses, and coil configurations that serve mainstream industrial applications. Inventory management by suppliers focuses on these high-turnover specifications to maintain responsive delivery capabilities.

Custom size requirements introduce additional manufacturing steps that extend lead times to 6-12 weeks, depending on complexity and supplier capacity. Non-standard coil diameters, unusual wall thickness combinations, or extended length specifications require dedicated production scheduling and specialized tooling. The manufacturing complexity increases exponentially for sizes outside standard parameter ranges, potentially requiring custom mandrels or specialized forming equipment.

Supplier Capability Assessment

Evaluating supplier capabilities requires examining both equipment capacity and technical expertise relevant to specific size requirements. Advanced coiling equipment becomes necessary for large-diameter coils or tight-radius configurations, limiting the supplier base capable of meeting specialized dimensional requirements. Quality control capabilities must scale appropriately with coil size, requiring larger inspection facilities and specialized handling equipment for oversized components.

Certification and traceability requirements become increasingly complex with custom dimensions, necessitating suppliers with robust quality management systems. ISO 9001:2015 certification provides baseline quality assurance, while industry-specific certifications such as AS9100 for aerospace applications or ISO 13485 for medical devices ensure appropriate quality standards for critical applications.

Company Introduction and Product Service Information

Shaanxi Chuanghui Daye Metal Material Co., Ltd. stands as a premier manufacturer of precision titanium coil tubes, leveraging over three decades of rare metal industry expertise to deliver superior products to global markets. Located in Baoji High-tech Development Zone, Shaanxi Province—China's renowned "Titanium Capital"—the company benefits from proximity to raw material sources and established industrial infrastructure that supports efficient manufacturing operations.

Manufacturing Capabilities and Size Range

Our advanced manufacturing facility encompasses precision coiling, annealing, and quality control capabilities that enable production across the complete size spectrum of titanium coil tubes. Modern equipment includes electron beam furnaces for high-purity melting, precision rolling mills for consistent wall thickness control, and automated coiling systems capable of producing coils from 100mm to 3000mm in diameter with exceptional dimensional accuracy.

The company's size production range covers outer diameters from 6mm to 50mm with wall thickness options spanning 0.5mm to 3mm, manufactured to tolerances within ±0.1mm for critical applications. Custom coil lengths extend from short prototype sections to production runs exceeding 500 meters, accommodated through flexible manufacturing scheduling and specialized handling systems.

Quality assurance measures encompass ISO 9001:2015 certified processes with comprehensive inspection protocols at each manufacturing stage. Dimensional verification utilizes precision measurement equipment calibrated to international standards, ensuring consistent product quality and full traceability documentation for critical applications requiring certificate compliance.

Customization and Technical Support

Engineering support services include application-specific size optimization, material grade selection assistance, and custom coil design consultation. Technical expertise encompasses thermal analysis, stress calculation, and corrosion assessment services that help customers select optimal size-material combinations for their specific operating conditions. Rapid prototyping capabilities enable small-batch production for testing and validation before full-scale manufacturing commitments.

Custom manufacturing services address unique dimensional requirements beyond standard specifications, supported by flexible tooling and specialized forming techniques. Close collaboration with engineering teams ensures optimal size selection that balances performance requirements with manufacturing feasibility and cost considerations.

Conclusion

The size options available for titanium coil tubes encompass a comprehensive range designed to meet diverse industrial applications across multiple sectors. Standard configurations provide immediate availability and cost-effective solutions, while custom sizing capabilities ensure optimal performance for specialized requirements. Understanding the relationship between size specifications, material properties, and application demands enables informed procurement decisions that optimize both performance and economic outcomes. The dimensional flexibility of titanium coil tubes, combined with superior material properties, positions them as preferred solutions for demanding applications where conventional materials prove inadequate.

FAQ

Q: What are the standard outer diameter options for titanium coil tubes?

A: Standard outer diameters typically range from 6mm to 50mm, covering most industrial heat transfer applications. Common sizes include 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, and 32mm outer diameters, with wall thickness options between 0.5mm and 3mm to accommodate various pressure ratings and heat transfer requirements.

Q: How do coil diameter specifications affect manufacturing lead times?

A: Standard coil diameters between 200mm and 1500mm typically maintain shorter lead times of 2-4 weeks due to standard tooling availability. Custom coil diameters outside this range may require specialized mandrels and an extended manufacturing time of 6-12 weeks, depending on the complexity and supplier capabilities.

Q: What factors determine the minimum achievable wall thickness for titanium coil tubes?

A: Minimum wall thickness depends on the intended application pressure, coil diameter, and forming requirements. Generally, wall thickness below 0.5mm becomes challenging for coiling operations, while structural requirements and pressure ratings establish practical minimum thicknesses based on ASME code calculations and safety factors.

Contact Chuanghui Daye for Custom Titanium Coil Tube Solutions

Shaanxi Chuanghui Daye specializes in precision-engineered titanium coil tube manufacturing with comprehensive size customization capabilities to meet your specific application requirements. Our technical team provides expert consultation on optimal size selection, material grade recommendations, and custom coil design solutions backed by over 30 years of rare metal industry experience. Contact our engineering specialists at info@chdymetal.com to discuss your titanium coil tube supplier needs and receive detailed quotations for both standard and custom dimensional specifications.

References

1. ASTM International. "Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers." ASTM B338-18, 2018.

2. American Society of Mechanical Engineers. "Boiler and Pressure Vessel Code, Section VIII: Rules for Construction of Pressure Vessels." ASME BPVC-VIII-1, 2021.

3. International Organization for Standardization. "Implants for Surgery - Metallic Materials - Part 2: Unalloyed titanium." ISO 5832-2:2018, 2018.

4. Materials Properties Handbook. "Titanium Alloys Processing and Applications." ASM International Handbook Committee, 2019.

5. Heat Exchanger Design Institute. "Guidelines for Coiled Tube Heat Exchanger Design and Manufacturing Standards." HTRI Technical Manual, 2020.

6. Corrosion Engineering Society. "Titanium Applications in Chemical Process Industries: Material Selection and Sizing Guidelines." NACE International Publication, 2019.
